Structuring a Gtk4 Rust App

Every good application needs a good architecture, and despite (or perhaps due to) its diabolical name, the Model-View-Presenter-ViewModel design pattern is a pretty good one, having been pioneered by Microsoft in 2011 when they still made decent software.

In short, an MVPVM app consists of the following elements:

• View: A dumb View responsible for displaying and affecting the displayed GUI without any non-trivial logic.
• ViewModel: A struct containing the View's data, that is dynamically updated by user actions and updates the View whenever it is modified by the Presenter.
• Presenter: The "glue" between the View and Model. User actions cause the Presenter's handlers to be invoked, that can modify the state of the View or ViewModel, or dispatch tasks to the Model.
• Model: All business logic. It is called synchronously by the Presenter, and can run asynchronous tasks and alert the Presenter upon their completion. The Model often has to perform async tasks, and these should be run on a separate tokio runtime to not strain Glib's single-threaded async runtime.

Each page should have its own View, ViewModel, and Presenter, although this could be made more granular if needed.

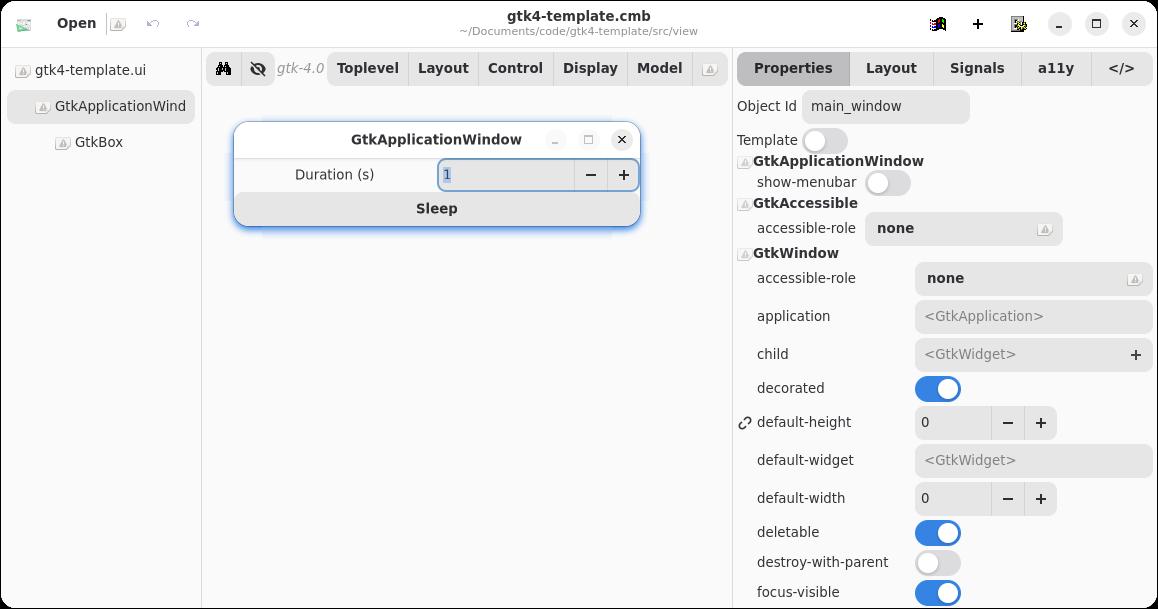

Gtk4 lets you create widgets programmatically, meaning that we could construct our entire UI in Rust. However this is often a poor idea, as it makes large refactors difficult and introduces a lot of boilerplate. Fortunately, the cambalache tool can be used to design the UI graphically with minimal hassle. The generated XML file can be loaded in Rust, and widgets to which you assigned a unique ID (e.g. main_window or duration_spin_button) will be accessible from Rust.

The View is a dumb struct that is responsible for what's displayed in the GUI. Besides a constructor and a method to connect signals, it should only contain methods that abstract GUI operations that the Presenter would want to perform, such as showing an alert dialog. All UI actions performed by the user are routed directly to the Presenter by using Gtk's connect_* methods.

Gtk can automatically populate the fields of such structs thanks to their composite templates, but it's very often more hassle than it's worth, especially because Views are meant to be kept very simple.

#[derive(Clone, PartialEq, Eq, PartialOrd, Ord, Hash, Debug)]
pub struct MainView {
    pub window: ApplicationWindow,
    pub duration: SpinButton,
    pub sleep: Button,
}

impl MainView {
    pub fn new(builder: &gtk::Builder) -> Self {
        Self {
            window: builder.object("main_window").unwrap(),
            duration: builder.object("duration_spin_button").unwrap(),
            sleep: builder.object("sleep_button").unwrap(),
        }
    }

    pub fn connect_signals(&self, presenter: &Rc<RefCell<MainPresenter>>) {
        self.sleep.connect_clicked(glib::clone!(
            #[weak]
            presenter,
            move |_| {
                presenter.borrow().on_sleep_clicked();
            }
        ));
    }

    pub fn success(&self) {
        self.window.alert("Success", "");
    }
}

The ViewModel is responsible for giving you easy access to all of the View's data, that you'd otherwise have to access by calling methods on the widgets themselves. There's a lot of Gtk boilerplate involved, but the important parts are the following. The inner ViewModel struct contains fields for every part of the UI that you want to be able to read/write (in this case, the duration spin button). Then the fields in the ViewModel can be bound to the GUI using bind_property, ensuring they're always synchronized.

mod imp {
    use std::cell::RefCell;

    use glib::{
        prelude::ObjectExt,
        subclass::{object::ObjectImpl, prelude::DerivedObjectProperties, types::ObjectSubclass},
        Properties,
    };

    #[derive(Properties, Default)]
    #[properties(wrapper_type = super::MainViewModel)]
    pub struct MainViewModel {
        #[property(get, set)]
        pub duration: RefCell<u64>,
    }

    #[glib::object_subclass]
    impl ObjectSubclass for MainViewModel {
        const NAME: &'static str = "MainViewModel";
        type Type = super::MainViewModel;

        fn new() -> Self {
            Self::default()
        }
    }

    #[glib::derived_properties]
    impl ObjectImpl for MainViewModel {}
}

glib::wrapper! {
    pub struct MainViewModel(ObjectSubclass<imp::MainViewModel>);
}

impl MainViewModel {
    pub fn new(view: &MainView) -> Self {
        let this: Self = glib::Object::builder().build();

        this.bind_property("duration", &view.duration, "value")
            .flags(BindingFlags::SYNC_CREATE | BindingFlags::BIDIRECTIONAL)
            .build();

        this
    }
}

The Presenter is the "glue" that coordinates the View and Model. It contains a constructor, a method for handling async callbacks from the Model, and handlers for user actions that get called by the View. Any business logic is handed off to the Model, which can run asynchronously on the tokio runtime to not block the main thread, as Gtk is single-threaded.

Gtk takes rust's ownership rules very loosely, so you'll notice that the Presenter is stored in an Rc<RefCell<_>> while the Model is in an Arc<Mutex<_>>. Unless performance proves to be an issue (it won't), just chuck everything that might be used by the Model into an Arc<Mutex<_>> (since it can run on any thread), and anything that is used only by the View, ViewModel, or Presenter in a Rc<RefCell<_>>.

#[derive(Clone, Debug)]
pub struct MainPresenter {
    view_model: MainViewModel,
    view: MainView,
    model: Arc<Mutex<Model>>,
}

impl MainPresenter {
    pub fn new(view: &MainView, model: Arc<Mutex<Model>>) -> Rc<RefCell<Self>> {
        let this = Rc::new(RefCell::new(Self {
            view_model: MainViewModel::new(&view),
            view: view.clone(),
            model,
        }));

        view.connect_signals(&this);

        this
    }

    pub fn process_event(&self, event: &Event) {
        match event {
            Event::Slept => {
                self.view.success();
            }
            _ => {}
        }
    }

    pub fn on_sleep_clicked(&self) {
        let duration = Duration::from_secs(self.view_model.duration());
        model::spawn!(self.model, async move |model: &mut Model| model.sleep(duration).await);
    }
}

The Model is where all of your business logic resides. Since it can run run async tasks separate from the GUI, it uses a channel to send any results of these async operations to the Presenter, including errors thanks to the model::spawn! macro's magic.

#[derive(Debug)]
#[non_exhaustive]
pub enum Event {
    Error(Error),
    Slept,
}

#[derive(Clone, Debug)]
pub struct Model {
    pub send: mpsc::Sender<Event>,
}

impl Model {
    pub const fn new(send: mpsc::Sender<Event>) -> Self {
        Self { send }
    }

    pub async fn sleep(&mut self, duration: Duration) -> Result<()> {
        if duration.as_secs() >= 3 {
            error!("Duration too long");
            bail!("Duration too long");
        }
        tokio::time::sleep(duration).await;
        self.send.send(Event::Slept).await?;
        Ok(())
    }
}

As demonstrated in the article, the MVPVM pattern works quite well for Rust Gtk applications, and hopefully shows that Gtk is a viable GUI toolkit for Rust despite the language's ever-improving GUI ecosystem.
